Fanuc M16iB Material Handling Robots

Fanuc M16iB 20 Robots

with Rj3iB Control
***Very Clean***
Tested —Multiple Units Available
Package comes with

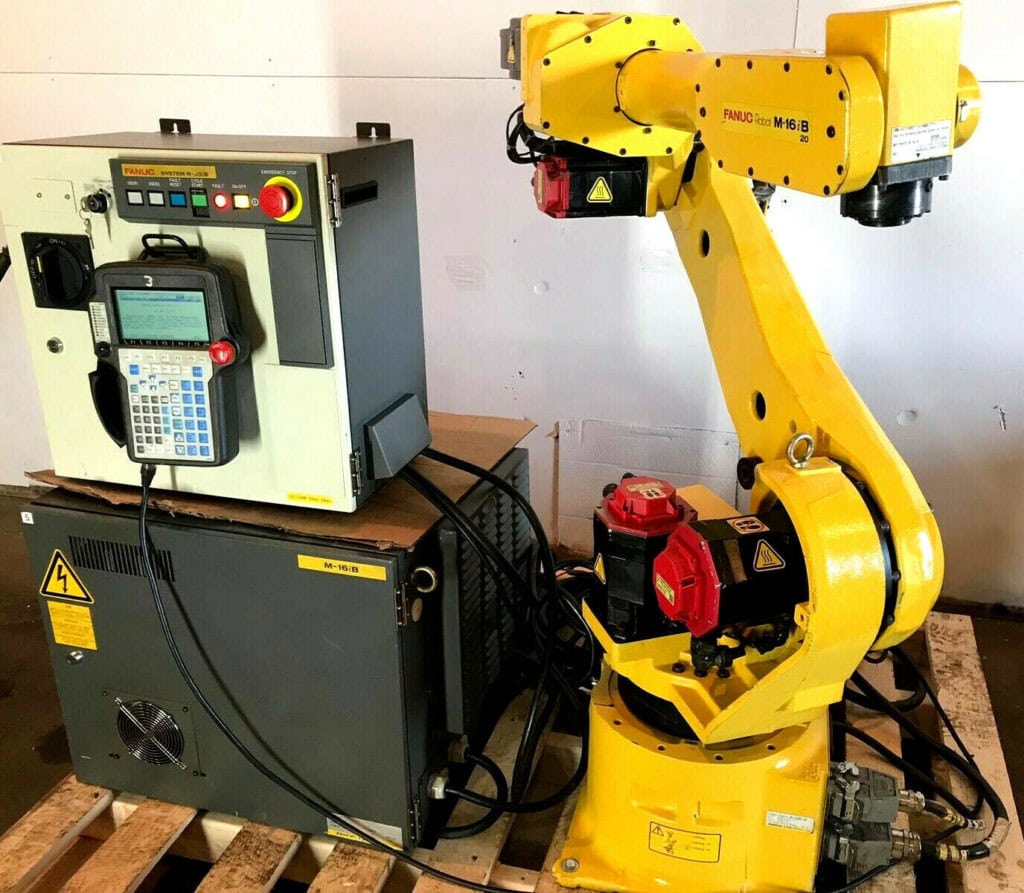

Fanuc M16iB Robot (20 Kg) ,

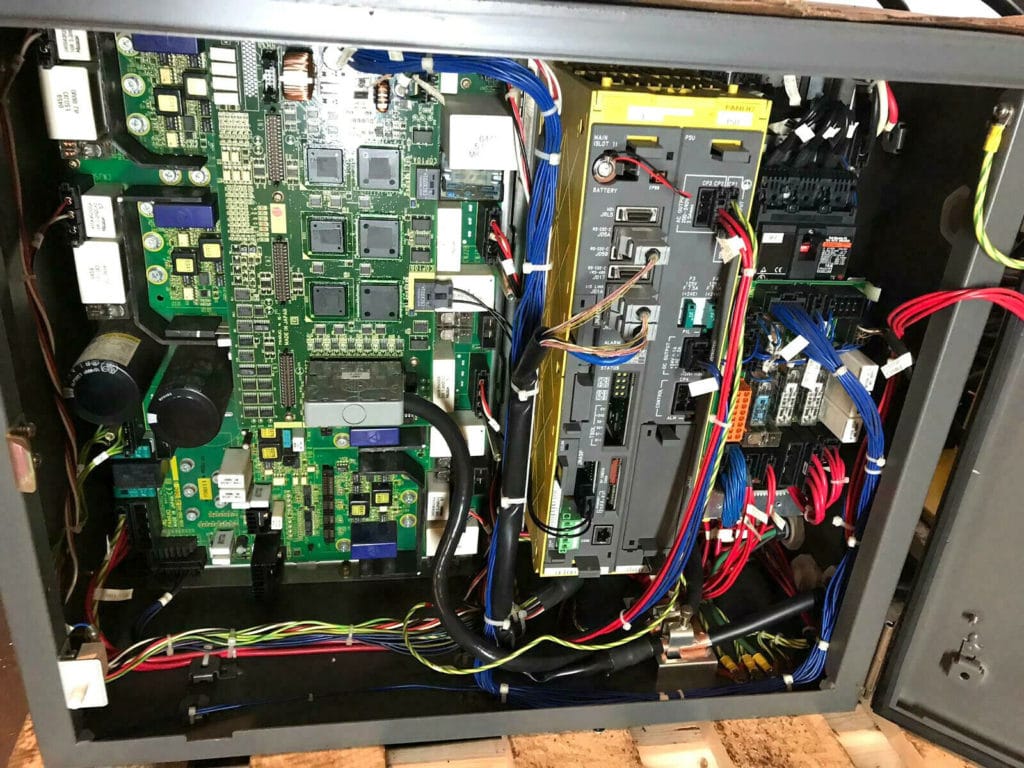

Rj3iB Control, Teach Pendant & Cables.

Manual included

We Load for FREE

Fanuc M16iB Robot Specifications

  • Axes: 6
  • Payload: 20 kg
  • H-Reach: 1667 mm
  • Repeatability: ±0.08 mm
  • Robot Mass: 220 kg
  • Structure: Articulated

Robot Motion Speed

J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range

J1 ±340°
J2 ±250°
J3 ±460°
J4 ±400°
J5 ±280°
J6 ±900°

Application

  • Material Handling
  • Packing
  • Machine Loading/Unloading
  • Part Loading/Transfer
  • Material Removal
  • Dispensing
