Genesis Versa RC3L welding cell – 2 Station Trunnion Turntable





Genesis Versa RC3L 2 Station Trunnion CNC Robotic Welding Cell Turntable





Genesis Versa RC3L 2 Station Trunion Type CNC Robotic Welding Cell

Specifications
Max Length Between Trunions    (84” Extended Tool length)
Max Weight Between Trunions     1,000 kg
Trunion Arm Table     32” x 82”
Fabricated Base     57” x 190”
Floor Space     104” x 190”
Equipped With

EQUIPPED WITH:

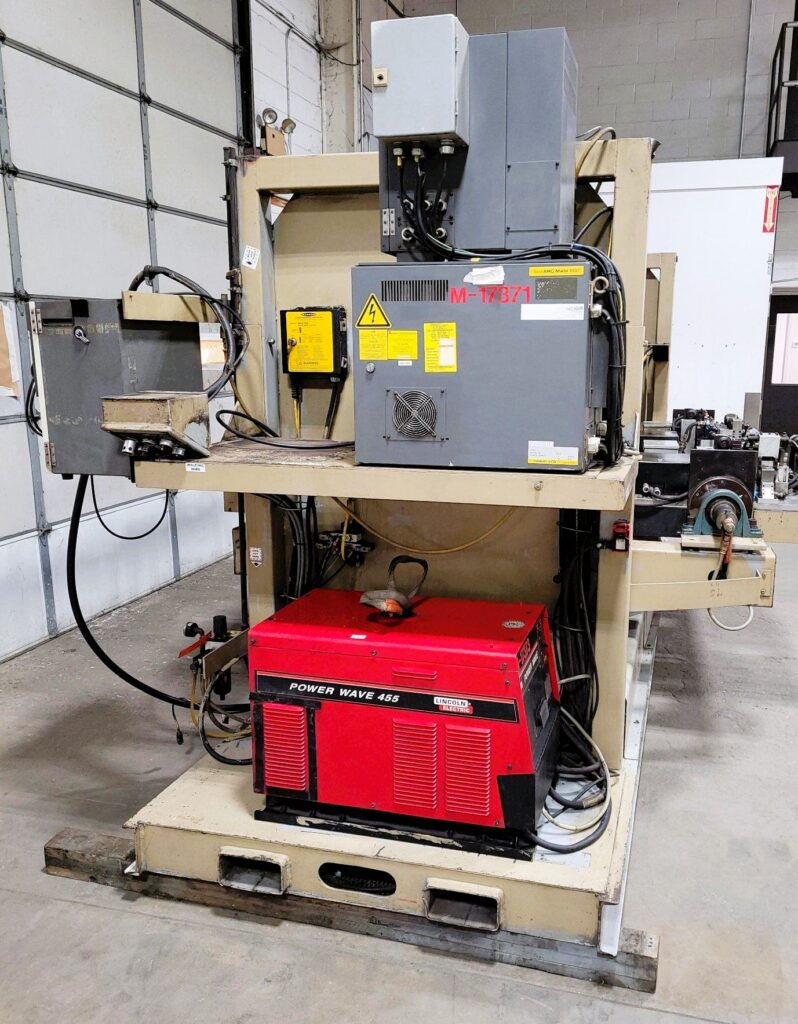

FANUC 100i ArcMate Robot Complete with FANUC RJ3 Controller and Teach Pendant. Tregaskiss Tough Gun Welding Torch(500 amp air-cooled torch) With collision sensing gun mount. Lincoln Power Wave 455R Welding Power Supply. Lincoln Power Feed PF-10R Wire Drive. The RC3L is a 180° Turntable Welding Cell with Head Tail Three axis positioner with Load/Unload while Robot is Welding. (2) 32” X 84” Welding Platforms. Panels, Gates, and Light Curtains. Torch and Wrist Alignment Station. Tregaskiss reamer with mister.

Fabricated Cell Base with Forklift Pockets.

 **Specification subject to final verification
