Genesis Versa RC3L welding cell – 2 Station Trunnion Turntable

Genesis Versa RC3L 2 Station Trunnion CNC Robotic Welding Cell Turntable

Technical Specifications

  • Max Length Between Trunions 82”(84″ extended)
  • Max Weight Between Trunions 1,000 kg
  • Trunion Arm Table 32” x 82”
  • Fabricated Base 57” x 190”
  • Floor Space 104” x 190”
Product Overview

The Genesis Versa RC3L Welding Cell is a state-of-the-art automation solution featuring a dual-station trunnion turntable, designed to enhance productivity and efficiency in welding operations. Equipped with a Fanuc ArcMate 100i robot, this cell delivers exceptional precision and versatility for various welding applications. The trunnion turntable allows for seamless loading and unloading of workpieces, minimizing downtime and maximizing throughput. With its robust construction and advanced robotic capabilities, the Versa RC3L ensures consistent weld quality and reliability, making it an ideal choice for manufacturers looking to streamline their welding processes and improve overall operational efficiency.



Specifications
Max Length Between Trunions     82”(84″ extended)
Max Weight Between Trunions     1,000 kg
Trunion Arm Table     32” x 82”
Fabricated Base     57” x 190”
Floor Space     104” x 190”

**Specification subject to final verification

What's Included

  • Versa RC3L System w/ 84” Extended Tool length
  • Three axis positioner

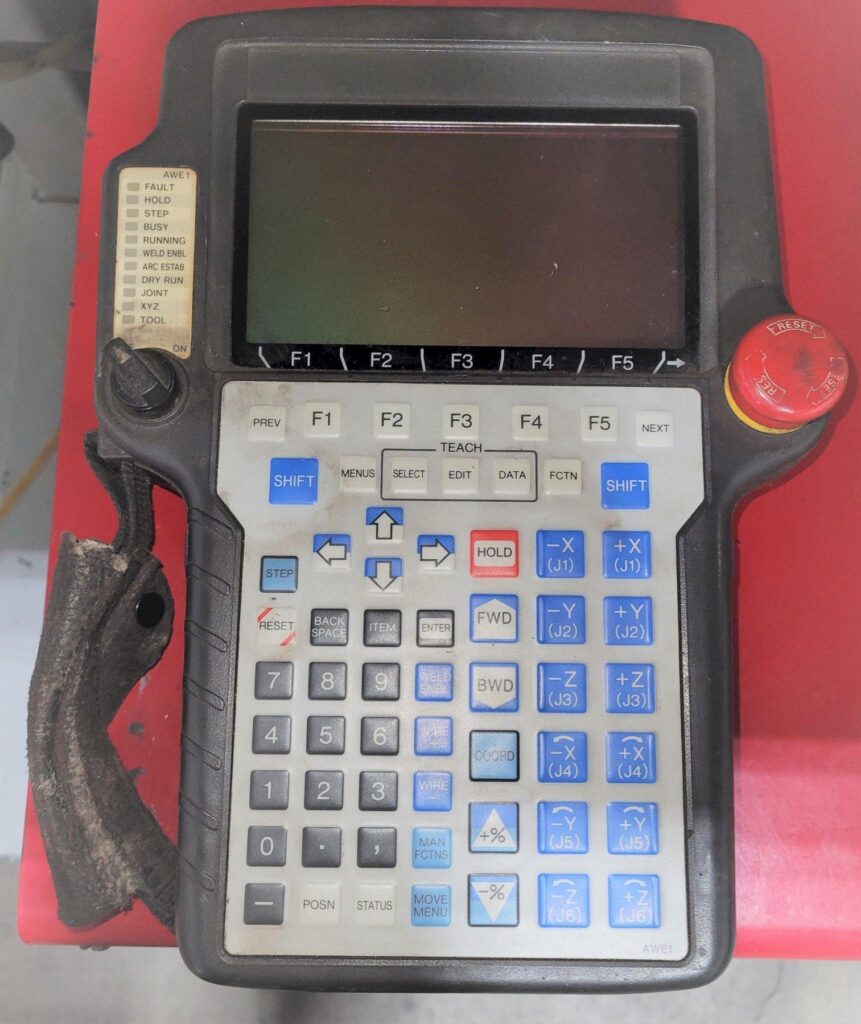

  • Fanuc 100i RJ3 Robot
  • Lincoln Powerwave 455R power supply.
  • Lincoln PF10-R wire feeder (post mounted)
  • Tweco 600 amp air-cooled torch
  • The welding torch 8ft long with 22 neck set up for .035” steel wire.
  • Welding Torch collision sensing gun mounts.
  • Torch / wrist alignment device
  • Air-Ease Reamer with mister
  • Genesis Double Check
  • Versa RC3L System w/ 84” Extended Tool length
  • Three axis positioner
  • Fanuc 100i RJ3 Robot
  • Lincoln Powerwave 455R power supply.
  • Lincoln PF10-R wire feeder (post mounted)
  • Tweco 600 amp air-cooled torch
  • The welding torch 8ft long with 22 neck set up for .035” steel wire.
  • Welding Torch collision sensing gun mounts.
  • Torch / wrist alignment device
  • Air-Ease Reamer with mister
  • Genesis Double Check

Ready to Discuss Your Project?

Our team of industrial robotics experts is ready to help you find the perfect solution for your automation needs. Contact us for a detailed quote and consultation.
