Genesis 4M Weld Cell for Steel or Aluminum



Genesis Versa 4M Twin Fanuc Robots Weld Cell for Steel or Aluminum

This robotic welding workcell is a pneumatic driven ferris wheel system designed to handle large or multiple high volume production parts.

Applications: Welding
Weight capacity: 900 – 1360 Kg.



Overview

Components:

  • (2) Fanuc Arc Mate 120i Welding Robots – 6 Axis
  • (2) RJ3 Controller
  • (2) Teach Pendants

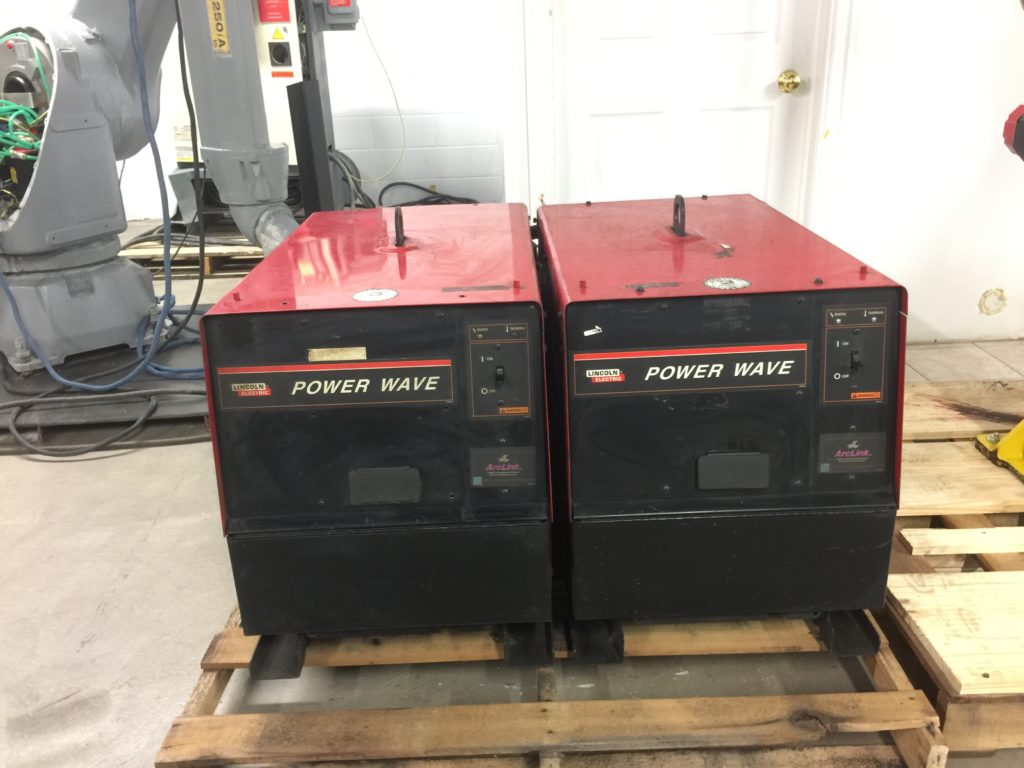

  • (2) Lincoln Powerwave 455M Welders
  • (2) Wire Feeders & Guns
  • Torch Reamer & Tip Calibration
  • 2-Station Trunnion Type Positioner w/ 7th Axis Rotation – 96″ x 42″ Capacity (each side)
  • Safety Enclosure
  • Weld Screens

Fanuc Twin Robot Weld Cell

Fanuc Twin Robot Weld Cell

Genesis Systems Versa 4M

Genesis Systems Versa 4M

Dual robotic Welding Cell
Genesis Systems Versa 4M
Fanuc Twin Robot Weld Cell

Fanuc Twin Robot Weld Cell

Robot Specifications

Axes: 6
Payload: 16 kg
H-Reach: 1542 mm
Repeatability: ±0.08000mm
Robot Mass: 370 kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
