Fanuc M16iB 20 Rj3iB

Fanuc M16iB 20 Rj3iB

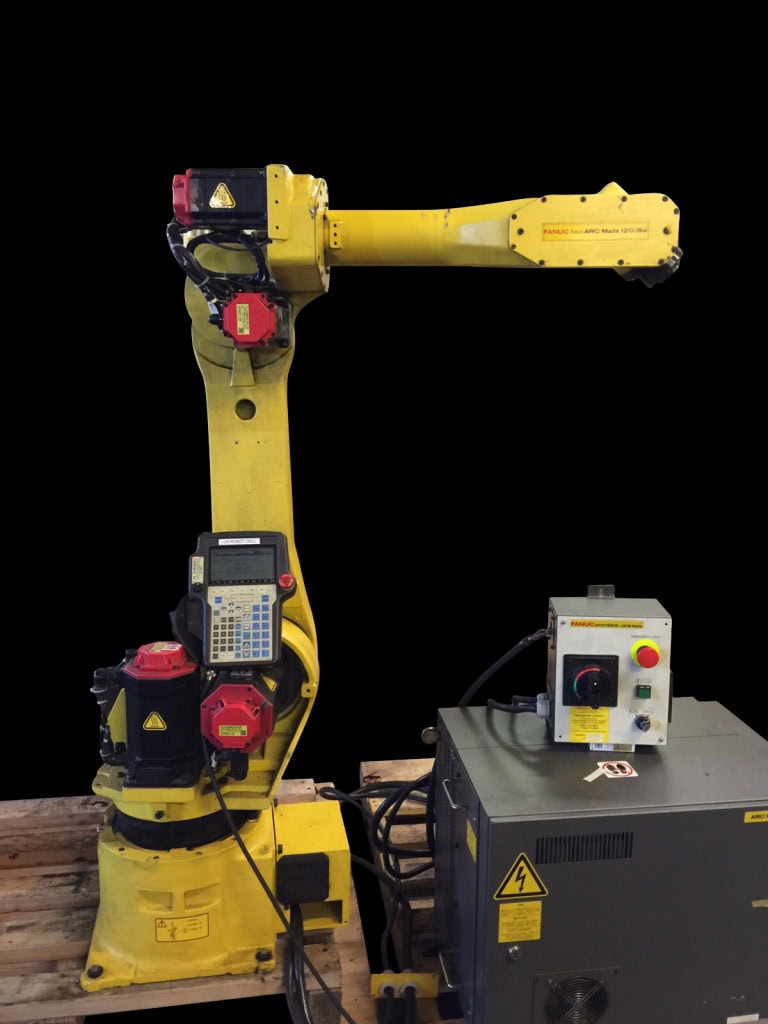

Package comes with

Fanuc M16iB Robot (20 Kg) ,
Rj3iB mate Control,
Teach Pendant

&

Cables
Manual included
We Load for FREE

Fanuc M16iB Robot Specifications

  • Axes: 6
  • Payload: 20 kg
  • H-Reach: 1667 mm
  • Repeatability: ±0.08 mm
  • Robot Mass: 220 kg
  • Structure: Articulated

Robot Motion Speed

J1165 °/s (2.88 rad/s)
J2165 °/s (2.88 rad/s)
J3175 °/s (3.05 rad/s)
J4350 °/s (6.11 rad/s)
J5340 °/s (5.93 rad/s)
J6520 °/s (9.08 rad/s)

Robot Motion Range

J1±340°
J2±250°
J3±460°
J4±400°
J5±280°
J6±900°

Application

  • Material Handling
  • Packing
  • Machine Loading/Unloading
  • Part Loading/Transfer
  • Material Removal
  • Dispensing
